Sugar Oversaturation Monitor Typical Sensor Mounting

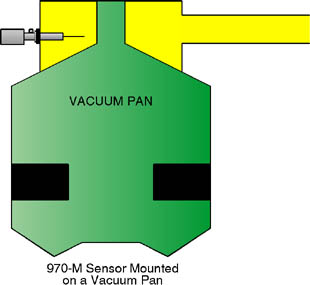

Drawing of sensor mounting The 970-M sensor may be horizontal or slope upward for installation convenience, but a downward slope should be avoided because it would be possible for flashing water droplets to run down to the last 2" sensitive portion of the vapor bulb and cool it.

Sufficient internal clearance should be allowed to be sure that the vapor bulb will not strike any obstruction. The sensor should be positioned so that the 1" square window is on the downstream side relative to vapor flow; flashing water will then be swept away from the vapor bulb.

For more details on installation and selecting the best location for the measuring element on a particular pan, please refer to the 970-M Installation Manual:

Installation Manual (older model, serial #455 and lower)

Installation Manual (current model, serial #456 and higher)
